Hybrid Press Brake - Servo Pump Control

“Energy-saving, fast-response CNC press brake powered by servo pump technology. Combining high bending accuracy with low energy consumption, perfect for modern sheet metal fabrication.”

Request a Quote

Design & Key Features

Energy Efficiency

The servo proportional system only runs on demand, reducing idle energy loss. Power consumption is reduced by 30–50% compared to conventional hydraulic systems.

Controller Scalability

Easily expandable for future upgrades, including CNC crowning, multiple backgauge axes, and automation interfaces.

High Bending Accuracy

Proportional valve with closed-loop control ensures precise synchronization, achieving repeat accuracy up to ±0.01mm.

High Bending Accuracy

Proportional valve with closed-loop control ensures precise synchronization, achieving repeat accuracy up to ±0.01mm.

Standard Configuration

Machnist - CNC press brake controller Esa875

Esa S875 Smarter Bending

  • 3D Graphical Programming
  • Offline Programming
  • Smart Multi-Axis Control

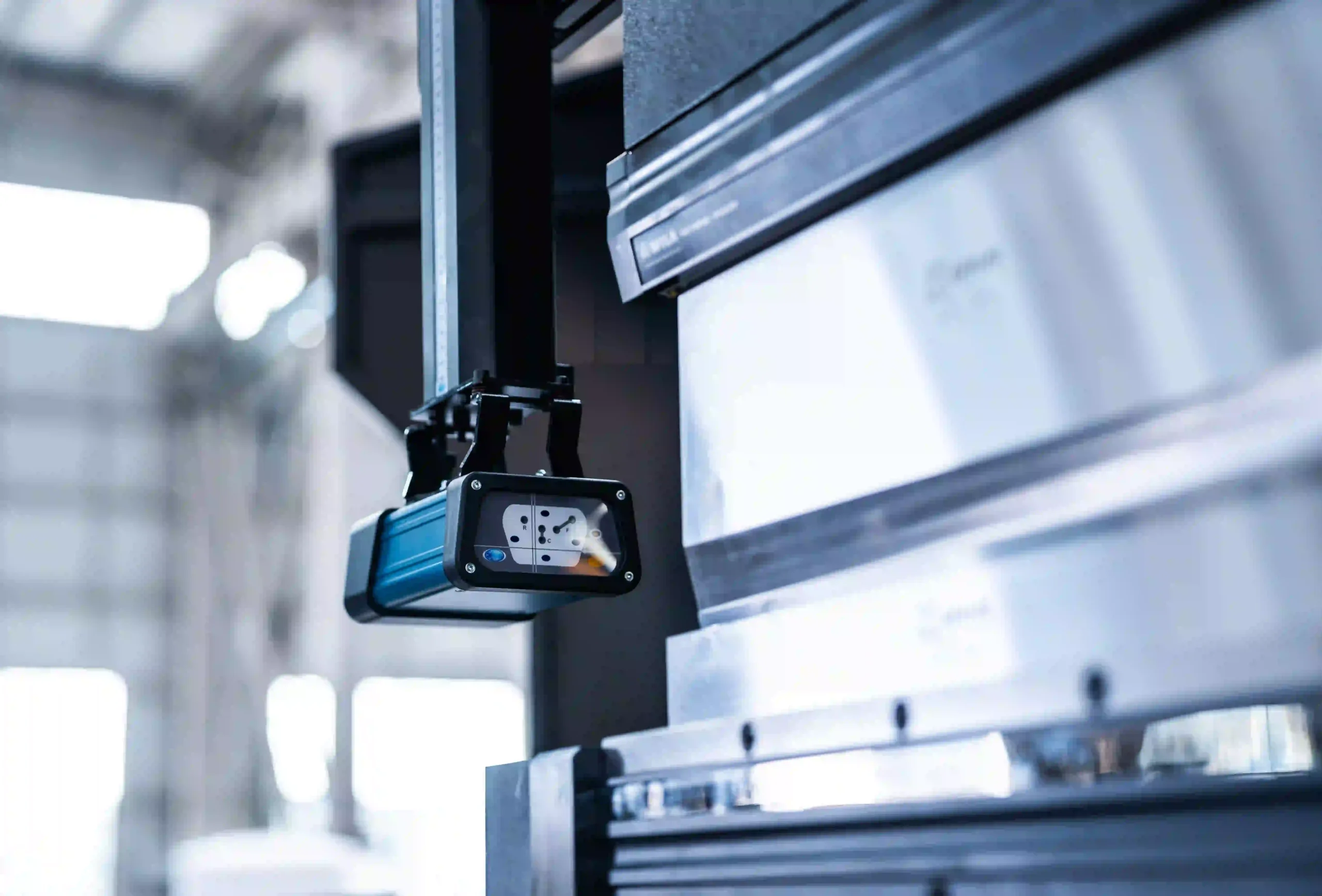

press brake safety DSP laser protect

DSP laser protect

  • 360° full area laser protection
  • Response time <10ms
  • Auto stop when danger detected

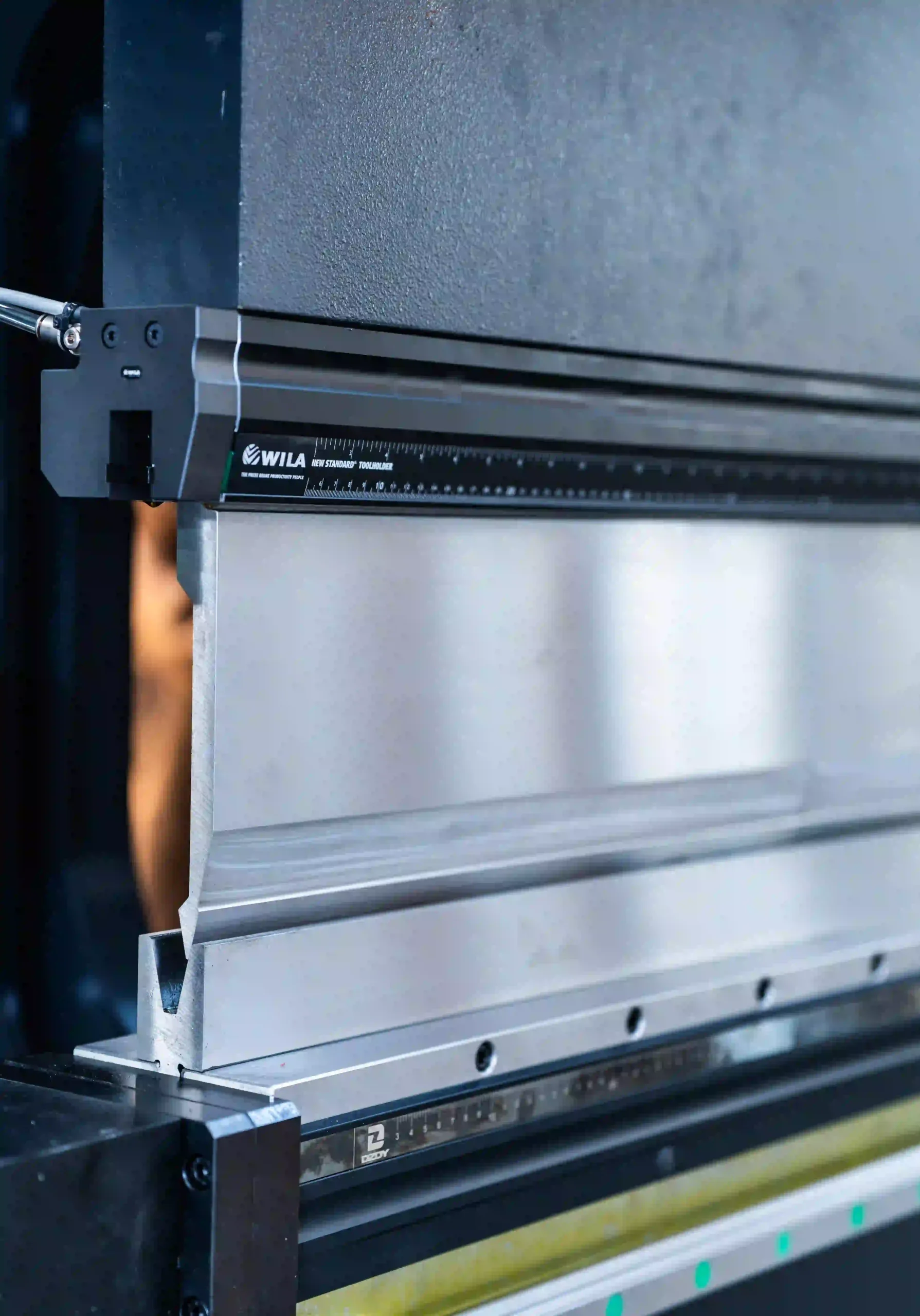

wila hydraulic clamp

WILA NSCL-IHC/UPB

  • Quick clamping for upper tools
  • Compatible with European style tools

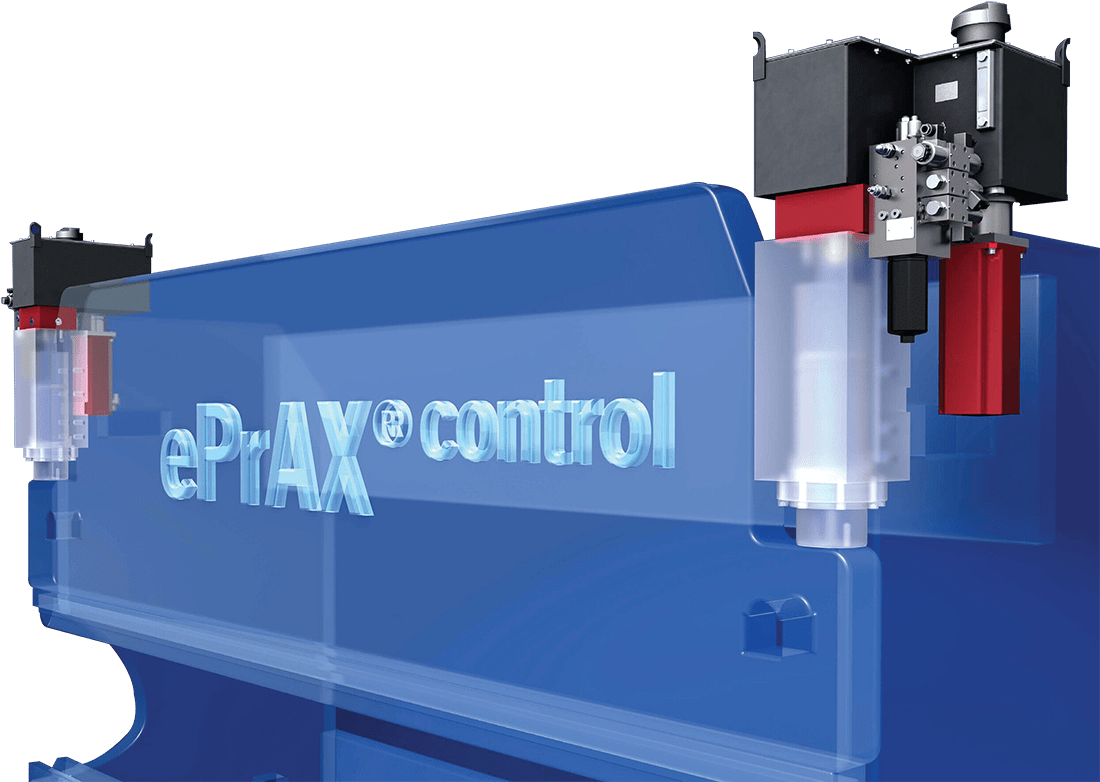

machnist - ePrAX® Hybrid Press brake Servo System

ePrAX® Hybrid Servo System

  • Save energy up to 60%
  • 30% faster response
  • Lower noise & heat
6axis backgauge of machnist press brake

6 Axis Backgauge

  • 6-axis backgauge for complex bending
  • Accuracy ±0.02mm
  • Auto adjust angle & step

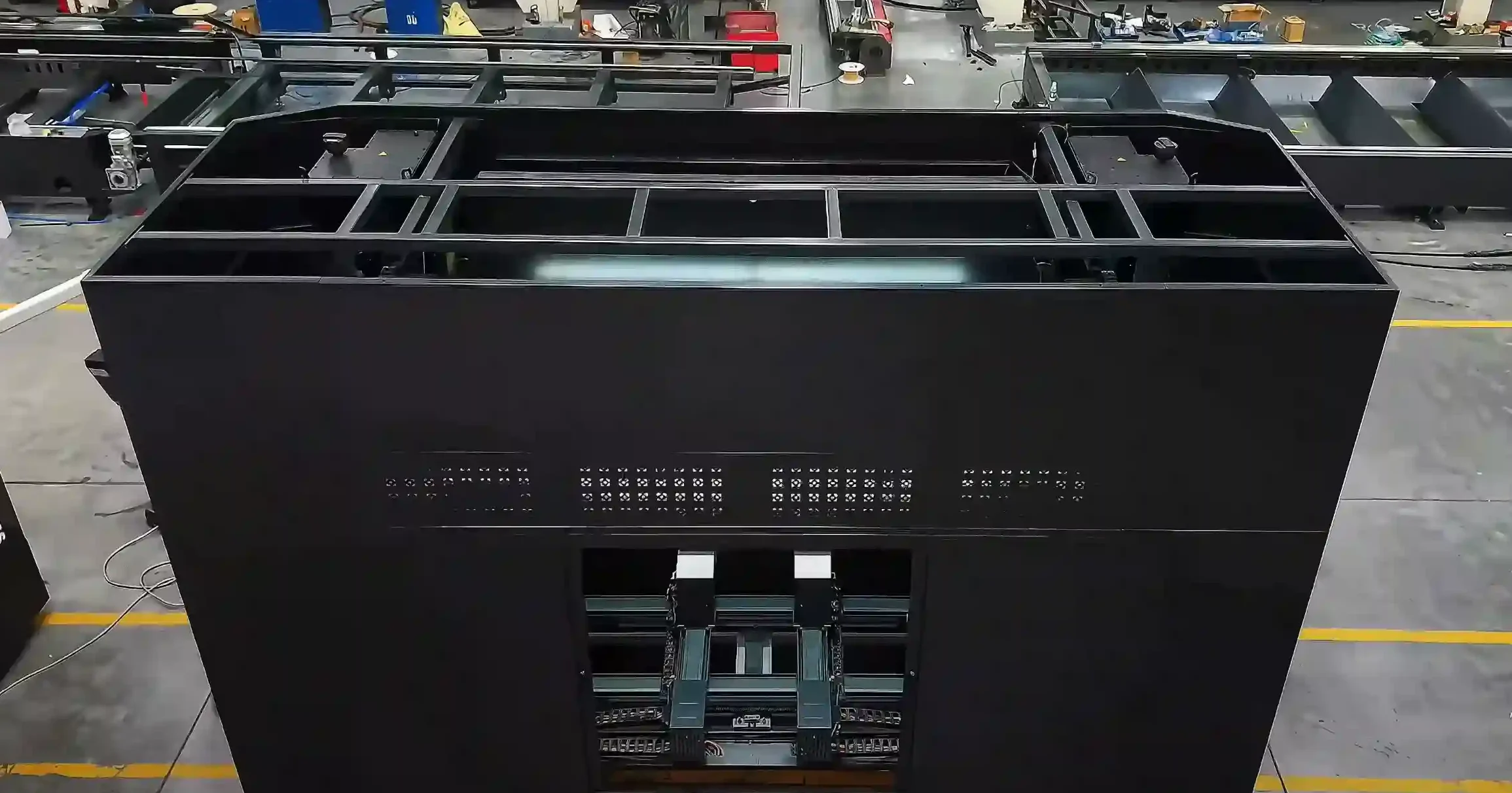

back view of pump control cnc press brake machine

Full Cover Sheet Metal

  • Modern full-cover design
  • Safe & clean working area
  • Easy maintenance access

Know more about hybrid press brake?

Our experts will tell you everything about hybrid brake press.

Common Parameter

machnist press brake machine for sale
ModelNominal ForceBending LengthStrokeThroat DepthOpen HeightMotor PowerMachine Dimensions
40T1600400kN1600mm200mm300mm480mm4kW2100×1400×2100mm
63T2000630kN2000mm200mm300mm480mm5.5kW2600×1500×2200mm
80T2500800kN2500mm250mm350mm520mm5.5kW3100×1600×2300mm
100T25001000kN2500mm300mm400mm520mm7.5kW3100×1700×2350mm
100T32001000kN3200mm300mm400mm520mm7.5kW3900×1700×2400mm
130T32001300kN3200mm300mm400mm580mm11kW3900×1800×2450mm
170T32001700kN3200mm300mm400mm580mm11kW3900×1900×2500mm
200T32002000kN3200mm350mm400mm580mm15kW3900×2000×2600mm
200T40002000kN4000mm350mm400mm620mm15kW4900×2100×2600mm
300T40003000kN4000mm350mm400mm620mm18.5kW4900×2200×2700mm
400T40004000kN4000mm400mm500mm620mm22kW4900×2300×2800mm
600T60006000kN6000mm400mm500mm620mm30kW6900×2600×3200mm
